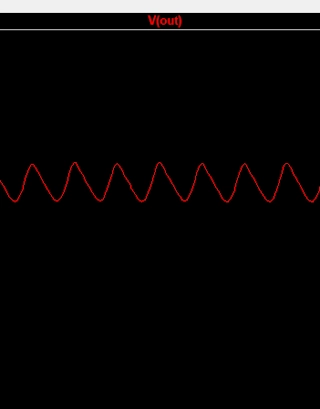

Voltage ripple in a circuit is found at the output of a transformer after rectifying an AC voltage, by placing a capacitor in parallel. It occurs when there are spontaneous current demands consumed by a circuit, and it has been incorrectly dimensioned in order to suppress them, or when a capacitor has not yet been added, in which case it is a one hundred percent ripple.
The formula is based on the principle of the "capacitor charging formula," adding the frequency term as a divisor of the desired maximum current in order to obtain the current value in a single cycle.
For a full-wave rectifier, multiply the actual frequency value by 2 and enter the result in the frequency field. For a half-wave rectifier, simply enter the actual frequency value.
Fill in three of the four fields to obtain the current, capacitance, frequency, or voltage.
| C | Capacitance in farad |
| I | Current in amper |
| f | Frequency in hertz |
| V | Alternated current in volts |
| I | |
| f | |
| V | |
| C | |
| ---| Cientific Notation |--- | ||||
| femto | pico | nano | micro | mili |
| e-15 | e-12 | e-9 | e-6 | e-3 |
| Kilo | Mega | Giga | Tera | Peta |
| e+3 | e+6 | e+9 | e+12 | e+15 |
