Compute the second order Passive LC Filter using the given formula.
Fill two of the three fields to compute de desired value, the frequency, the capcitance or the indutance.

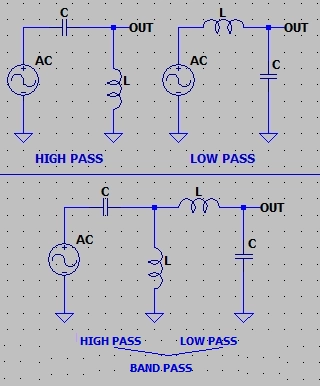

Below are the arragement of the LC Filter circuit to act as high-pass or low-pass frequency. Just the arrangement indicate it's an high-pass or low-pass.
| fo | Ressonance Frequency in hertz |
| C | Capacitance in farad |
| L | Inductance in henry |
| BW | Bandwidth 6dB in hertz |
| fo | |
| C | |
| L | |
| BW 6dB | |
| ---| Cientific Notation |--- | ||||
| femto | pico | nano | micro | mili |
| e-15 | e-12 | e-9 | e-6 | e-3 |
| Kilo | Mega | Giga | Tera | Peta |
| e+3 | e+6 | e+9 | e+12 | e+15 |
References:
Wikipedia Low-pass filter Wikipedia High-pass filter
